Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module

Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module

  • Nome do produto
    Módulo de câmera endoscópica USB separada
  • Sensor
    Sensor CMOS OH01A10
  • Resolução
    1280x800
  • Fov
    D95°
  • F.No
    4.0
  • Distorção da TV
    <-2>
  • Escala de focalização
    10~100 mm
  • Certificação
    CE REACH RoHS ISO
  • Lugar de origem
    Guangdong, China
  • Marca
    SINCERE FIRST
  • Certificação
    CE, FCC, RoHS, REACH, ISO
  • Número do modelo

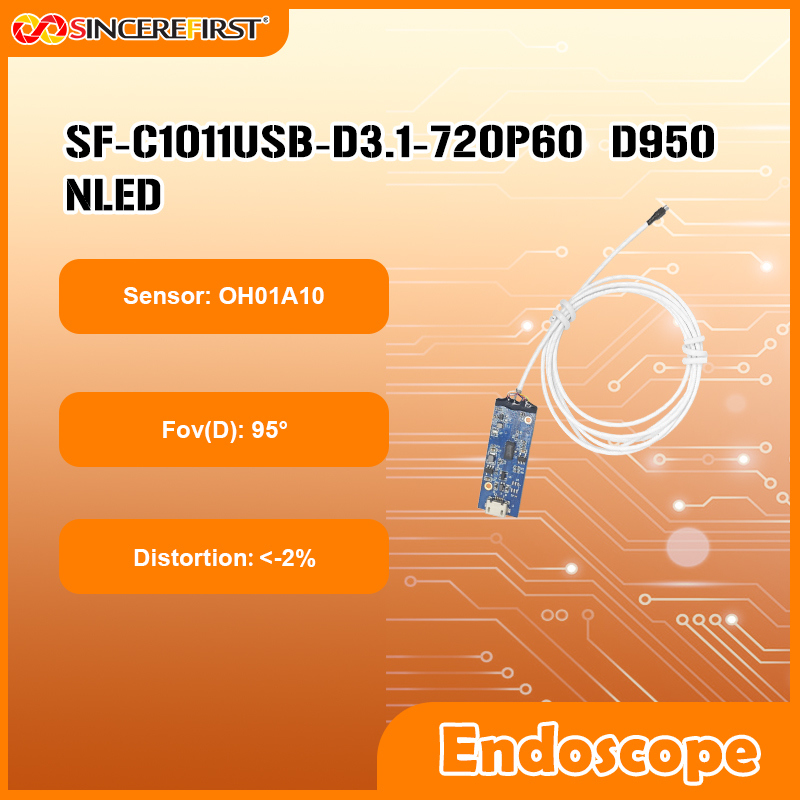

    SF-C1011USB-D3.1-720P60 D950 NLED
  • Quantidade de ordem mínima
    5 unidades
  • Preço
    negotiable
  • Detalhes da embalagem
    Pacote, caixa de caixa
  • Tempo de entrega
    7 - 15 dias de trabalho
  • Termos de pagamento
    L/C, Western Union, T/T, MoneyGram, Paypal e outros
  • Habilidade da fonte
    350000 PCs / mês

Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module

Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module

Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module 0

Product Description:

This is a Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module. Centered on the OmniVision OH01A10 CMOS color image sensor, it is a professional device designed for dynamic observation in narrow spaces, catering to multiple scenarios including medical care, industry, and scientific research. The module is equipped with 1MP effective pixels, supports 1280×800 native resolution, and can stably output 720P@60FPS high-definition dynamic image streams. With a sensor size of 1/14.25 inch and a pixel size of 1.116 μm×1.116 μm, it achieves dual guarantees of detail clarity and dynamic performance within a compact volume.​

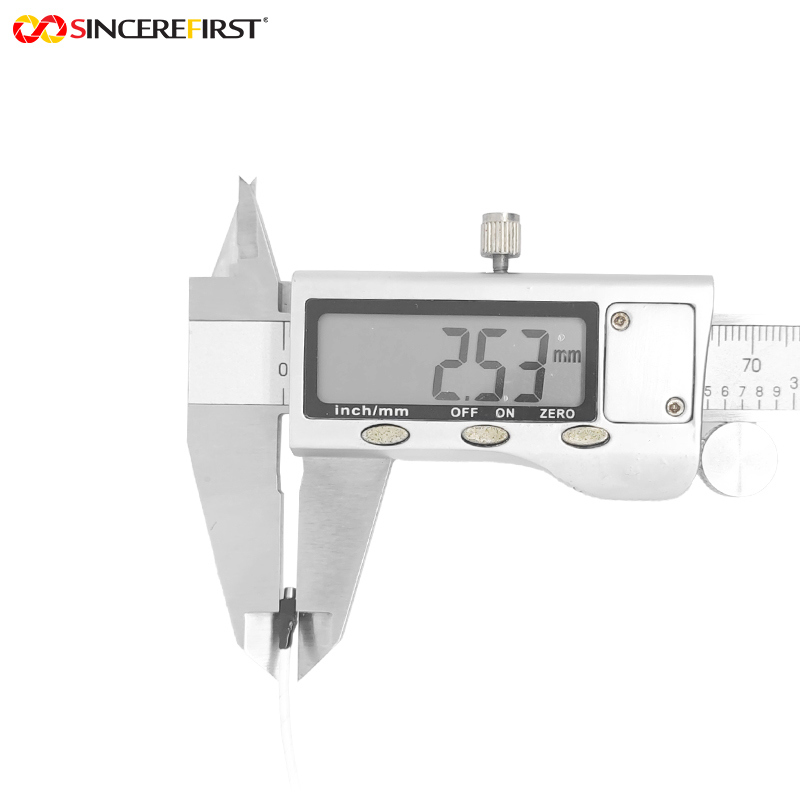

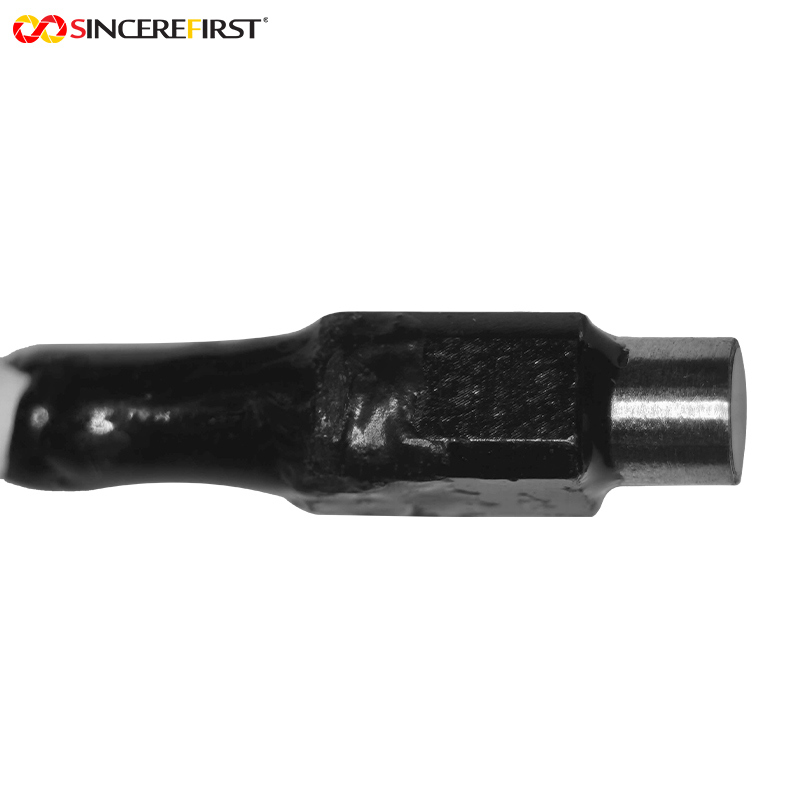

In terms of optical performance, the module features a 95° wide field of view (DFOV), paired with a 1.25mm fixed focal length, an F4.0 aperture, and a 10~100mm manual focusing range—allowing flexible adjustment of clarity based on observation targets. Meanwhile, its TV distortion is strictly controlled at < -2%, preventing stretching or compression at the image edges. For structural design, it adopts a Separated layout with a lens diameter of only 3.3mm, enabling easy access to narrow spaces such as thin tubes and deep cavities. It can also be optionally equipped with 4 integrated 0201-type LED fill lights to handle low-light environments.​
For the interface, it uses a Micro USB port, supports the UVC universal video protocol, and is seamlessly compatible with mainstream operating systems such as Windows, Linux, and macOS. In the production process, SMT (Surface Mount Technology) and AA (Active Alignment) processes are adopted to ensure the consistency and stability of mass-produced products. Additionally, it has passed international certifications and tests including CE, FCC, RoHS, and Reach, meeting compliance requirements for use in different regions around the world.

  •

Features:

  1. Multi-Scenario Compatibility: With international certifications like CE, FCC, RoHS, and Reach, it can directly meet local compliance standards—whether for industrial testing equipment exported to European and American markets or endoscopic instruments in the domestic medical field. No additional certification adaptation is needed, lowering the threshold for cross-regional applications.​

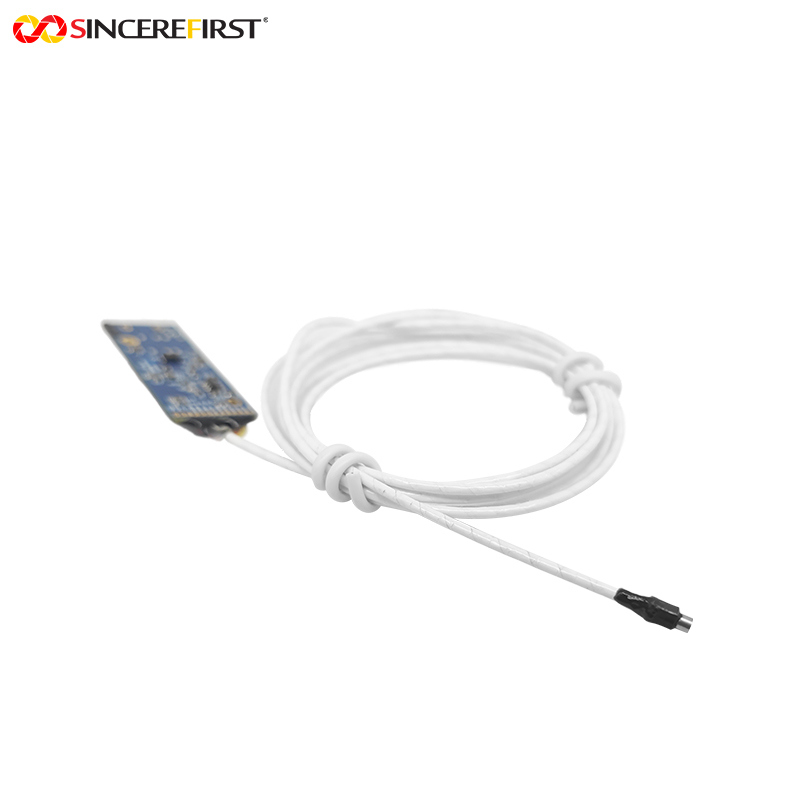

  2. High Installation Flexibility: The Separated layout separates the lens from the control unit. Combined with a super-small lens diameter of only 3.3mm, it can be easily integrated into small detection probes, minimally invasive medical devices, and other equipment. The 95° wide field of view covers a larger observation range in narrow spaces, reducing the number of lens movements and improving detection efficiency.​
  3. Precise Dynamic Observation: The 720P@60FPS image output can capture fast-moving or peristaltic targets without motion blur or stuttering. Combined with < -2% TV distortion and a 10~100mm manual focusing range, it not only ensures precise size and position in dynamic scenarios but also clearly presents microscopic details through manual focusing.​
  4. Stable and Convenient Usage: The SMT process enhances the vibration resistance and temperature change tolerance of components, while the AA process ensures the alignment accuracy between the lens and the sensor—preventing imaging deviations during long-term high-frequency use. The Micro USB interface + UVC protocol supports plug-and-play functionality, eliminating the need for dedicated driver installation and simplifying the equipment deployment process.



Technical Parameters:

Product Name

CMOS UVC Endoscope Camera Module

Sensor

OH01A10 CMOS Sensor

Resolution 12080x800

FOV

D95°

F.NO

4.0

Diameter

3.3mm

Max Frame Rate

60FPS

Interface

USB 5Pin, USB2.0

Warranty

10 Years

Certification

CE, FCC, REACH, ISO, RoHS


Applications:

  • Veterinary Laparoscopic Examination: Adapts to tissue movement caused by animal respiration and provides stable, continuous visual feedback.​

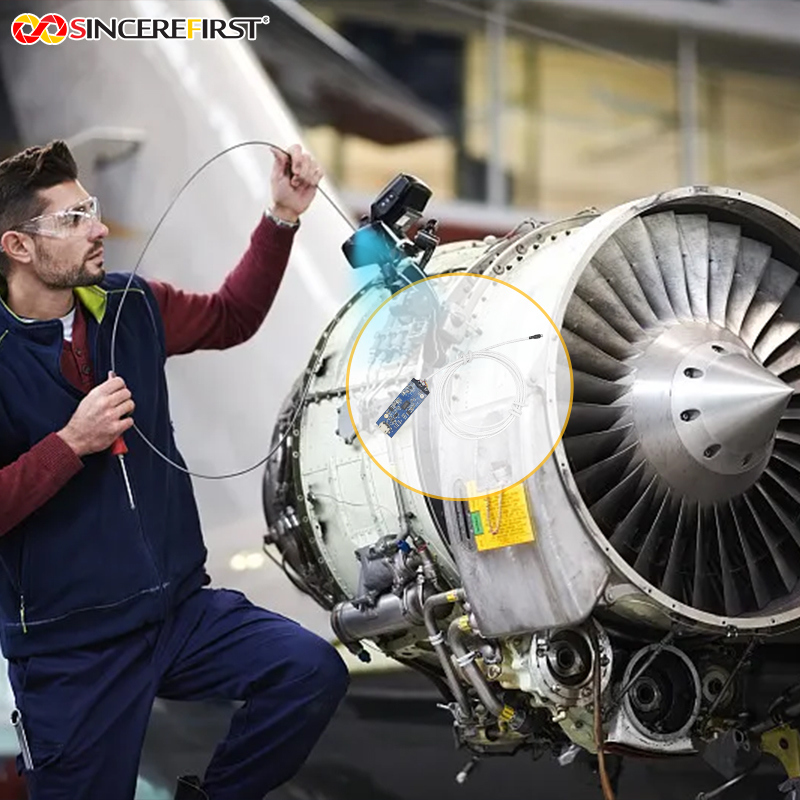

  • Precision Assembly Process Monitoring: During the assembly of precision electronic components, high-frame-rate videos capture every subtle movement, providing complete image records for quality traceability.​
  • Hysteroscope: High-frame-rate videos smoothly display the relative movement between the electrosurgical loop and the endometrium, allowing doctors to precisely control the resection range and ensure surgical safety.​
  • Dental Scanner: Quickly captures continuous image sequences of tooth surfaces, enabling high-precision 3D model reconstruction and obtaining the real geometric shape of teeth.


Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module 1

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.

4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About US:

Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module 2



Cooperative Brands & Customers:

Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module 3



Why Chooes US:

Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module 4


Detail Pictures:

Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module 5
Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module 6Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module 7
